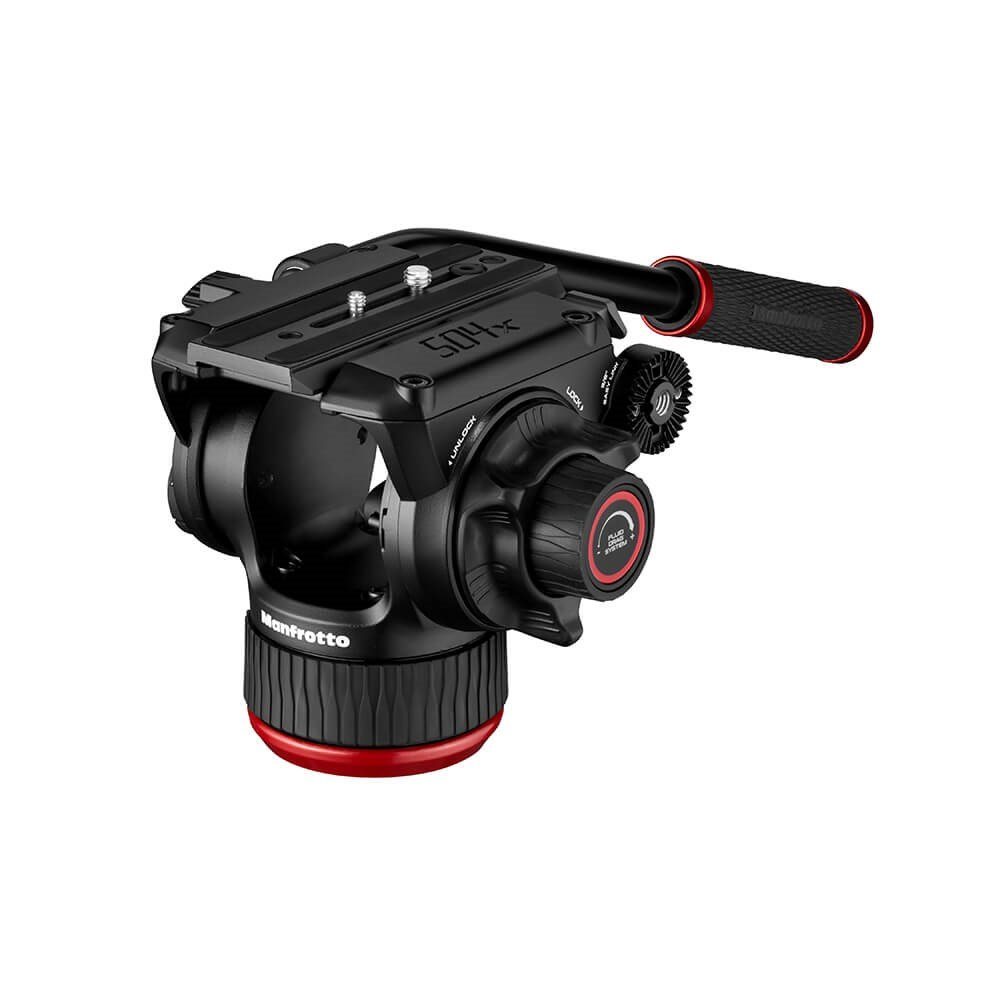

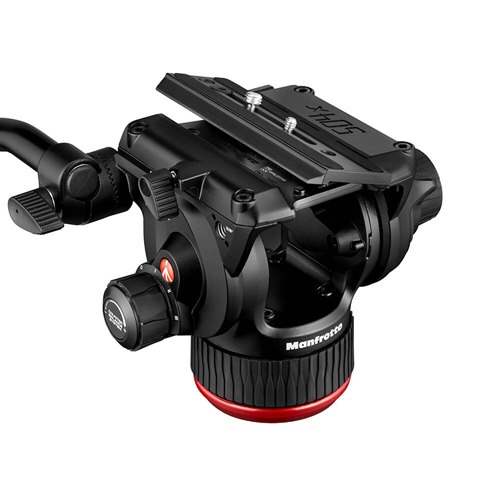

The Manfrotto 504X is a further development of the hugely successful 504HD.
It is a more compact and lighter version that now also has a flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers. The head is manufactured in a brand new attractive aluminum construction, and has a maximum payload of 12 kg. Using Manfrotto's new fluid technology, the video head allows you to make vibration-free smooth pans and tilts. It's never been easier for users to create high-quality video recording thanks to a 4-stage counterweight system that can carry payloads up to 6.5kg at 55mm C.0.G. It makes it easier and more practical to use a wide range of different cameras. Two new Easy-Link thread connections come with Manfrotto anti-rotation technology and Arristift, which allows for mounting an external monitor or other accessory equipment on the side of the head.
The sliding quick release plate side lock mount allows for faster camera/scope setup, keeping video equipment stable and balanced. Leveling is easy thanks to the smart backlit spirit level.
Product information
Material: Aluminium
Weight: 2 kg
Size: 370 x 205 mm
Joystick length: 37 cm
Diameter at the base: 75 mm
Max load: 6.5 kg
Warranty: 2 years
