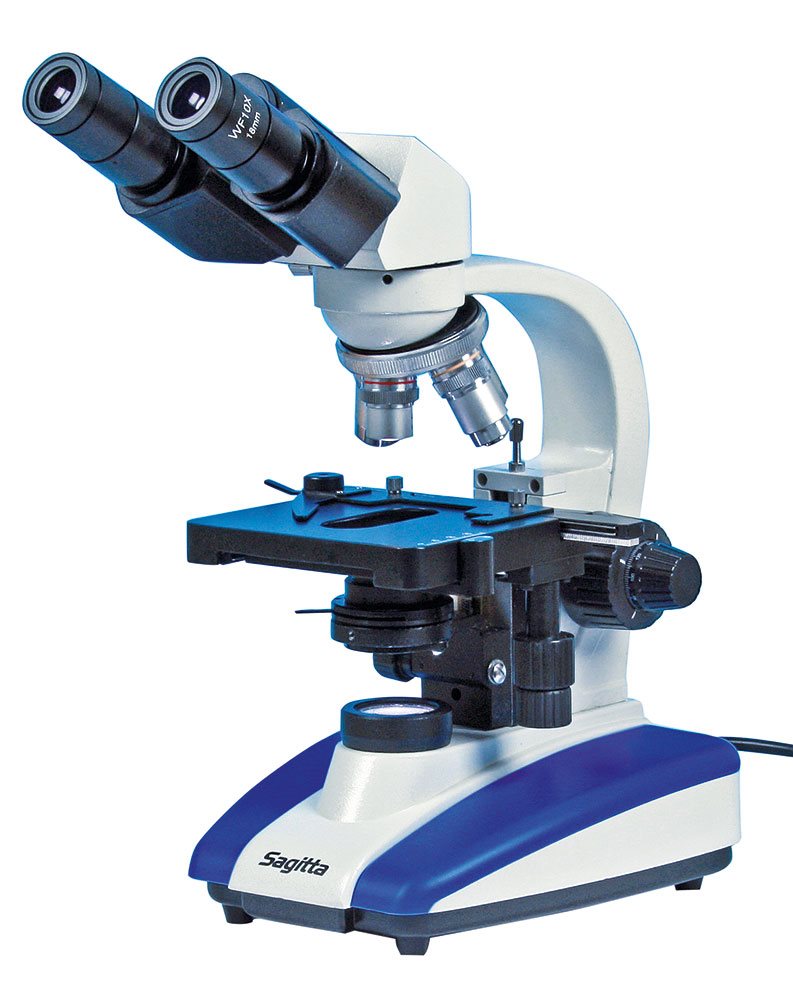

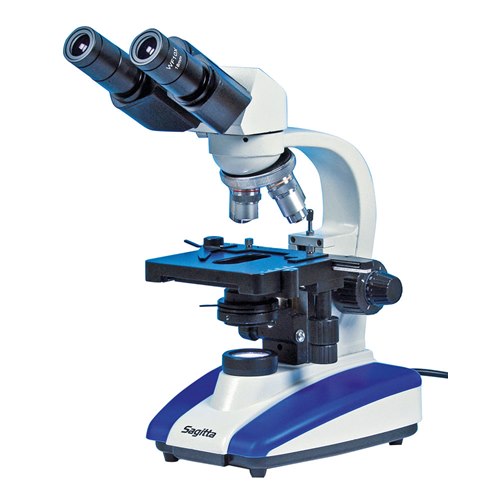

The E-138 is easy to move thanks to a grippy chassis. The underlighting consists of an LED lamp that can be infinitely dimmed. The eyepiece head can be rotated 360 degrees and the right eyepiece can be adjusted separately for different diopters. The objective turret is angled.
Product information
Manufacture: Sagitta
Eyepieces of widefield type: 2 pcs 10x, opening 18 mm
Objectives: Achromatic 4x, 10x, 40x, 100x
40x and 100x have spring mounts. 100x can be used with oil
Magnification: 40x, 100x, 400x, 1000x with included 10x eyepiece
60x, 150x, 600x, 1500x can be obtained with 15x eyepieces, which are ordered separately
Abbe condenser 1.25 NA, which is adjustable in height. With iris diaphragm and filter holder
Cross table (specimen holder) with mm scales with vernier. Vertical adjustment screws The entire table is moved in one joint
Lighting: LED. Infinitely adjustable brightness
Fuse: 0.5 A (can be ordered separately)
Dimensions: Height 37 cm, width 17.5 cm, depth 30 cm
Dust cover and immersion oil included
Weight: 4.1 kg
Warranty: 5 years
