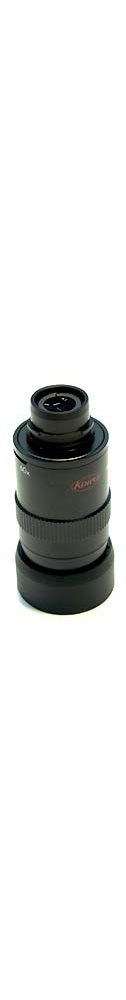

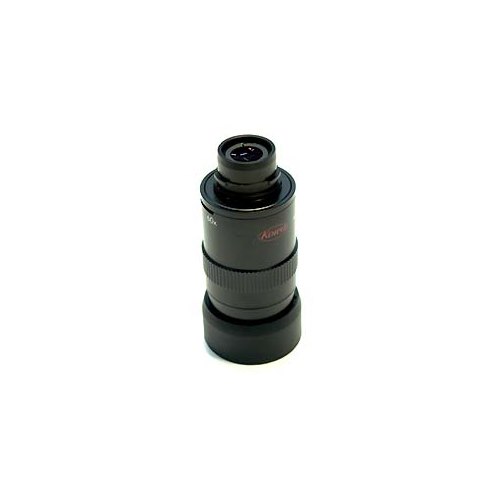

The new generation of this zoom eyepiece is now equipped with a modern screw-type eyecup.
Kowa's internal designation of the eyepiece is TE-9Z. The eyepiece fits all tubes in the current series TSN-82SV, 660 and 600. It also fits the old 1980s-90s series TS-610 (TS-611/TS-613) and the successor to the classic "gray sow", TS-601 and above all, the extremely popular TSN-1 and TSN-3 Prominar. In order for it to fit the TSN-820, a bayonet adapter is required (see next to this), but then the ability to quickly change between the eyepieces of the different generations also disappears. Comes with a plastic lens cover that can be anchored to the equipment.
Note! If you want to upgrade your old TSN-1 with this eyepiece, and have an original hard plastic eyepiece cover with threaded adapter, this must be removed.
Product information
Magnification: 21-63x (TSN-82SV) / 20-60x (TSN-660 / 600)
Field of view, w/1000 m: 31-17 (TSN-82SV) / 33.2-17.5 (TSN-660 / 600)
Eye distance (eye-relief): 16.5~16 mm
Exit pupil, mm: 3.9-1.3 (TSN-82SV) / 3.3-1.1 (TSN-660) / 3.0-1.0 (TSN-600)
Weight: 237 g
Length: 90 mm
Warranty: 10 years
Fits the following models in ascending generation order:
TSN-1/-3 (1980s-90s)
TS-601 (1980s)
TS-610 (1990s)
TSN-660 (2000s)
TSN-600 (2000s)
TSN-82SV (2010s)
